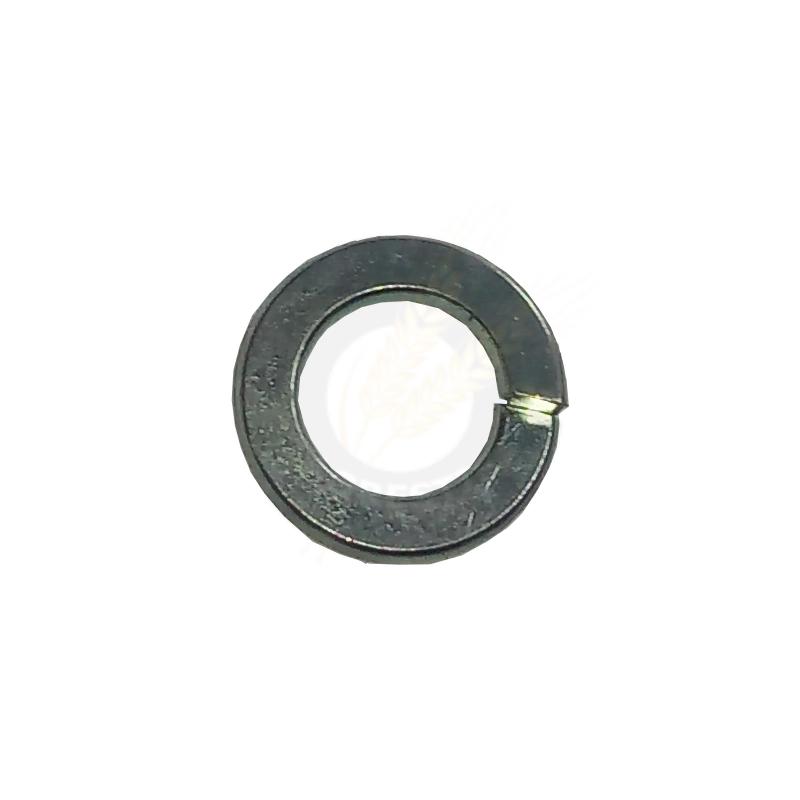

Saiba Grower M10

Saiba Grower M10

Cod produs: P2163

Stoc: in stoc

Greutate: 0.01 kg

Pret / buc:

0.50 LEI TVA inclus

Contactati-ne:

Descriere

Informatii suplimentare

Schema roata antrenare SPC

Schema brazdar fata SUP

Schema brazdar spate SUP

Schema sectie semanat SPC

KK30 schita 6 (jgheaburi de dirijare)

KK30 schita 7 (grup valturi culegatoare)

KK30 schita 9 (bloc depanusare culegator)

KK30 schita 10 (subansamblu port cutit)

KK30 schita 12 (grup pinioane si roti dintate)

KK30 schita 14 (grup conic culegator)

T40 EOL schita 8 (Sectie depanusare 2)

Descriere

Se utilizeaza in cazul asamblarilor cu piulita si filet.

Informatii suplimentare

Imaginile afisate pe site sunt cu titlu de prezentare. Aspectul real al produselor poate sa difere fata de fotografii.

SC Agrestis SRL face eforturi permanente pentru a mentine acuratetea datelor aflate pe site. Cu toate acestea, pot exista erori in datele furnizate care includ dar nu se limiteaza la erori de masurare, erori de operare, diferente estetice, care nu influenteaza functionalitatea produsului. Daca sesizati o asemenea eroare, va rugam sa ne informati.

La cerere, punem la dispozitie documentatia necesara pentru achizitionarea produselor folosind fonduri nationale sau europene de dezvoltare.

Conform ordonantei de urgenta 34/2014, aveti dreptul de a returna orice produs achizitionat online, din orice motiv, in termen de 30 zile de la primire. Produsul trebuie sa nu prezinte urme de utilizare, zgarieturi sau lovituri si sa fie nefolosit. Taxele de transport in cazul returnarii ii revin cumparatorului in cazul in care motivul returului este determinat exclusiv de client. Returul se va solutiona in termen de 14 zile de la data receptionarii produsului de catre SC Agrestis SRL intr-un mod stabilit de comun acord cu clientul, prin schimbarea produselor sau returnarea contravalorii prin virament bancar.

Schema roata antrenare SPC

Roata de antrenare echipeaza semanatorile Mecanica Ceahlau SPC pentru plante prasitoare. Prin intermediul rotii de antrenare se pune in functiune partea de fertilizare in timpul semanatului.

Disponibil la vanzare avem atat roata completa (anvelopa, camera, pinioane de reglare a debitului de ingrasaminte, lanturi, etc) cat si componente ale acesteia.

Componente Figura 17:

1. Furca

FS-8.1.0N

2. Surub special

FS-8.2

3. Zavor

SPC8L-6.3.0B

4. Furca asamblata

FS-8.4.0M

5. Surub tirant SPC (P0536)

SPC6-6.4.0

5. Surub de reglaj

SPC6-6.4.1.0

5. Piulita hexagonala

SPC6-6.4.2

5. Saiba A 18

STAS 5200

5. Opritor

SPC6-6.4.6

5. Stift crestat 5x30 (P2120)

STAS 9729/2

6. Saiba A 16

STAS 5200

7. Lagar

FS-8.7.0M

7. Teava FS (P0441)

FS-8.7.1M

7. Inel elastic 26x1.2

STAS 5848/3

8. Splinturi 6.3x63 (P0847)

STAS 1991

9. Ax FS-8.9M (P0708)

FS-8.9M

10. Razuitor

FS-7.12A

11. Surub M8x25 (P0841)

SR ISO 4017

12. Saiba Grower M16 (P2157)

SR 7666-2

13. Placa

F6-7.15

14. Piulita Tr. 18x4

SPC6-06.00.12

15. Bucsa uzura I si II set (P1329)

FS-8.7.3M

16. Piulita M16 (P0632)

STAS 4071

17. Saiba 13x ø30x2

NUP 183

18. Intinzator 1 (P0478)

FS-8.18.0M

19. Intinzator 2 (P0479)

FS-8.19 0M

20. Ax 8.20.M (P0711)

FS-8.20M

21. Set roti lant

FS-8.21.0M

21. Roata lant SPC Z12 fertilizare nou (P0565)

FS-8.21.1M

21. Roata lant SPC Z15 fertilizare nou (P0564)

FS-8.21.2M

21. Roata lant SPC Z17 fertilizare nou (P0563)

FS-8.21.3M

21. Roata lant SPC Z34 fertilizare nou (P1350)

FS-8.21.4.0V

22. Distantier

FS-8.22M

23. Pana ax SPC (P0714)

STAS 1012

24. Gresor hidraulic M6 (P0311)

STAS 1116

25. Bucsa uzura I si II set (P1329)

FS- 8.7.2M

26. Saiba Grower M12 (P2164)

SR 7666-2 (<2008)

27. Saiba 20 x 30 x1

FS- 4.3

28. Lant 08B 52 zale SPC (P0604)

STAS 5174

29. Piulita M12 (P0630)

STAS 4071 (<2008) STAS 9851 (>=2008)

30. Aparatoare

FS- 8.30.0N

31. Piulita fluture M8 (P0842)

SUP48-11.44.0A

32. Teava telescopica L 210 mm (P1264)

FS- 8.32.0M

34. Rola FS (P0482)

FS- 8.34M

35. Surub M12x30 (P0844)

SR ISO 4017

36. Saiba M12x30

SUP21- 2.31.0/2

37. Lagar FS (P0490)

FS- 8.37M

38. Surub M10x30 (P0653)

SR ISO 4017

39. Piulita M10 (P1042)

STAS 9851 (>=2008) STAS 4071 (<2008)

40. Saiba Grower M10 (P2163)

SR 7666-2

41.Saiba M10 (P1679)

STAS 5200

42. Surub M8x25 (P0841)

FS- 8.42M

43. Piulita M8 (P2083)

STAS 4071

Componente Figura 18:

44. .Roata asamblata

FS-8.15.0M

45. Brat 1 si 2 set (P0448)

FS-8.15.1M - FS-8.15.2M

46. Surub M12x40 (P0845)

STAS 4272

47. Saiba Grower M12 (P2164)

SR 7666-2

48. Piulita M12 (P0630)

STAS 4071 (<2008)

48. Piulita M12 autoblocanta (P2111)

STAS 9851 (>=2008)

49. Carcasa 1 si 2 set (P0455)

F6-8.6

50. Inel sferic (P0456)

FS-8.7

51. Rulment 6205 2RS ZKL-ZVL (P0549)

SR 3041

52. Bucsa I

FS-8.15.9

53. Surub M8x25 (P0841)

SR ISO 4017

54. Saiba Grower M8 (P2162)

SR 7666-2 (<2008)

55. Saiba M8 (P2141)

STAS 4071 (<2008); STAS 9851 (>=2008)

56. Anvelopa 155/80/12 (P0073)

155 SR 12 (5.00-12) STAS 9090

57. Pana ax SPC (P0714)

STAS 1012

58. Aparatoare lant (P2109)

FS-8.15.15.1.0M

59. Carcasa 1 si 2 set (P0455)

F6-8.16

60. Capac aparatoare (P1509)

FS-8.15.15.2.0M

61. Bucsa II

FS-8.18

62. Piulita M18x1,5 (P1126)

STAS 4373

63. Saiba 20x62x3

NUP 183

64. Saiba 13x30x2

NUP 183

65. Eclisa

FS-8.15.22 M

66. Roata de transport asamblata

FS-8.15.13.0M

67. Semijanta pentru ax cu roata (P0724)

F6-8.13.1 A

68. Roata lant SPC Z12 fertilizare nou (P0565)

FS-8.21.1M

68. Roata lant SPC Z15 fertilizare nou (P0564)

FS-8.21.2M

68. Roata lant SPC Z17 fertilizare nou (P0563)

FS-8.21.3M

68. Roata lant SPC Z34 fertilizare nou (P1350)

FS-8.21.4.0V

69. Lant 08B 110 zale SPC (P0603)

STAS 5174

69. Lant 08B 52 zale SPC (P0604)

STAS 5174

69. Lant 081 92Z SPC (P0663)

STAS 5174

70. Ax cu roata SPC (P0941)

FS-8.15.13.2.0

72. Camera 145-155/12 (P0086)

STAS 627/3

73. Surub M10x30 (P0653)

SR ISO 4017

73. Surub M12x30 (P0844)

SR ISO 4017

74. Piulita M12 (P0630)

STAS 9851 (>=2008); STAS 4071 (<2008)

75. Saiba Grower M10 (P2163)

SR 7666-2 (<2008)

75. Saiba Grower M12 (P2164)

SR 7666-2

76. Piulita fluture M8 SUP (P1260)

SUP48-11.44.0A

77. Capacel ventil

STAS 843

78. Ventil 20

STAS 7025/2

79. Surub M12x1,5x35

FS-8.15.23.3

80. Piulita conica

Rm-01.02/5-3

Schema brazdar fata SUP

Componente:

1. Brazdar dublu disc

SUP29DK-14.1.1.0

2. Brat scurt asamblat SUP29DK (P1029)

SUP29DK-14.1.2.0

2. Brat scurt as. SUP29DK (P2376)

SUP29DK-14.3.2.0

3. Tub seminte SUP 29 DK cu burduf (P0444)

SUP21-6.25.0/I

4. Surub pentru tabla B4.8x13

STAS 9344

7. Brida M12 tip V int=50 SUP (P0698)

SUP3.6-2.7

8. Profil U asamblat

SUP29-2.8.0DK

9. Bolt II

SUP3.6-2.9

10. Brida M10 tip U SUP int=56 mm (P0696)

SUP3.6-2.10

11. Suport articulatie sudat (P0695)

SUP3.6-2.11.0

12. Articulatie SUP (P0697)

SUP3.6-2.12

13. Tija SUP L440 (P1195)

SUP29DK-14.1.13

14. Arc SUP (cu dublu disc) (P0535)

SUP3.6-2.14A

15. Siguranta elastica

SCU3-9.11

16. Saiba Grower M12 (P2164)

SR 7666/2

17. Piulita M12 (P0630)

SR EN ISO 10512

18. Saiba M8 (P2141)

SR EN ISO 7091

19. Splint 4x25

SR EN ISO 1234

20. Saiba A14

SR EN ISO 7091

21. Piulita M10 (P1042)

SR EN ISO 4032

22. Saiba Grower M10 (P2163)

SR 7666/2

23. Bolt I

SUP3.6-2.34

24. Saiba speciala

GDP2.5-2.7.4

25. Piulita M12 autoblocanta (P2111)

SR EN ISO 10512

Schema brazdar spate SUP

Componente:

1. Brazdar dublu disc

SUP29DK-14.2.1.0

2. Brat lung asamblat SUP29DK (P1030)

SUP29DK-14.2.2.0A

3. Tub seminte SUP 29 DK cu burduf (P0444)

SUP21-6.25.0/I

4. Surub pentru tabla B4.8x13

STAS 9344

7. Brida M12 tip V int=50 SUP (P0698)

SUP3.6-2.7

8. Profil U asamblat

SUP29-2.8.0DK

9. Bolt II

SUP3.6-2.9

10. Brida M10 tip U SUP int=56 mm (P0696)

SUP3.6-2.10

11. Suport articulatie sudat (P0695)

SUP3.6-2.11.0

12. Articulatie SUP (P0697)

SUP3.6-2.12

13. Tija SUP L440 (P1195)

SUP29DK-14.1.13

14. Arc SUP (cu dublu disc) (P0535)

SUP3.6-2.14A

15. Siguranta elastica 4x60

DIN 11024

16. Saiba Grower M12 (P2164)

SR 7666/2

17. Piulita M12 (P0630)

SR EN ISO 4032

18. Saiba M8 (P2141)

SR EN ISO 7091

19. Splint 4x25

SR EN ISO 1234

20. Saiba A14

SR EN ISO 7091

21. Piulita M10 (P1042)

SR EN ISO 4032

22. Saiba Grower M10 (P2163)

SR 7666/2

23. Bolt I

SUP3.6-2.34

24. Saiba speciala

GDP2.5-2.7.4

25. Piulita M12 autoblocanta (P2111)

SR EN ISO 7040

Schema sectie semanat SPC

Sectia de semanat echipeaza semanatorile Mecanica Ceahlau SPC pentru plante prasitoare. Are rolul de incorporare a semintelor in sol. Cuprinde suport, roata tasare si diverse componente.

Lantul cinematic al semintelor la semanatorile SPC cuprinde in ordine Exhaustor, Transmisie seminte si Sectia de semanat.

Disponibil la vanzare avem diverse componente ale sectiei de seminte.

Componente:

1. Splint 4x32

STAS 1991

2. Piulita M10 (P1042)

STAS 4071

3. Saiba M10 (P1679)

STAS 5200

4. Saiba Grower M10 (P2163)

SR 7666-2

5. Ax II SPC (P1531)

SPC6-5.18M

6,7. Surub M10x30 (P0653)

SR ISO 4017

8. Lant 5A 9 zale

STAS 2585/2

9. Surub M10x45 (P0843)

SR ISO 4017

10. Distantier 1 dreapta SPC (P0647)

SPC6-5.53M

11. Saiba 11x25x1

NUP 183

12. Surub M12x180 (P0650)

STAS 4272

13. Distantier 2 dreapta SPC (P0646)

SPC6-5.54M

14. Brat dreapta SPC (P0945)

SPC6 – 5.3.0

15. Surub M12x180 (P0650)

SPC6-5.84M

16. Piulita speciala filet stg. SPC (P0972)

SPC6 – 5.20.B

17. Roata lant SPC Z9 seminte (P0585)

SPC6 - 05.00.49C

18. Roata lant SPC Z10 seminte (P0584)

SPC6 - 05.00.50C

19. Roata lant SPC Z11 (P0837)

SPC6 - 05.00.38C

20. Roata lant SPC Z16 seminte (P0836)

SPC6 - 05.00.51C

21. Saiba asezare mica filet stg. (P1207)

SPC6-5.17M

22. Semijanta roata tasare (P0897)

SP4-5.29.3 A

22. Ax roata tasare tip vechi (P0831)

SPC6-5.8.0S

22. Ax roata tasare tip nou (P0477)

SPC6-5.8.0S

22. Anvelopa presiune 0 (P0305)

SPC6-5.9.2/A

23. Inel pasla IP 16 (P1533)

STAS 6577

24. Lagar roata tasare (P0489)

SPC6- 5.6.0 D

25. Bucsa SPC roata tasare (P0859)

SPC6-5.6.2N

26. Distantier

SPC6 – 00.00.01 S

27. Brat stanga SPC (P0944)

SPC6 – 5.4 A

28. Distantier 1 stanga (P1248)

SPC6-5.65M

29. Piulita M24 joasa (P0635)

STAS 4373

30. Saiba A2

STAS 5200

31. Piulita M12 (P0630)

STAS 4071

32. Saiba M12 (P1582)

STAS 4373

33. Distantier 2 stanga SPC (P0645)

SPC6-5.65M

34. Rama de fixare SPC (P0742)

SPC6 – 5.2.0.V

35. Tija reglare SPC (P0537)

SPC6 - 5.1.0.B

35. Placa

SPC6-5.1.1.0

35. Tija

SPC6-5.1.2.0

36. Arc SPC (P0538)

SPC6-05.00.19

37. Bucsa SPC tija reglare (P0465)

SPC6-5.90

38. Piulita M14 (P0631)

STAS 4071

38. Piulita M14

STAS 4373

38. Saiba A14

STAS 5200

KK30 schita 6 (jgheaburi de dirijare)

Subansamblu 6

Componente:

13. Roata lant SIP Z26 o166x30 KK30-06/13 72-0101 (P2286)

KK30-06/13 72-0101

14. Pinion lant SIP Z8 cu canal pana KK30-06/14 72-0103 (P2318)

KK30-06/14 72-0103

15. Pinion lant cu bucsa SIP Z8 o118x40 KK30-06/15 72-0104 (P2267)

KK30-06/15 72-0104

16. Ax SIP o30x449 KK30-06/16 72-0105 (P2305)

KK30-06/16 72-0105

17. Ax SIP o30x390 KK30-06/17 72-0106 (P2304)

KK30-06/17 72-0106

31. Surub M6x25 (P0651)

35. Piulita M8 (P2083)

36. Piulita M6 (P2082)

37. Piulita M12 (P0630)

38. Piulita M10 (P1042)

39. Saiba Grower M8 (P2162)

40. Saiba Grower M10 (P2163)

41. Saiba Grower M6 (P2161)

43. Saiba Grower M12 (P2164)

45. Siguranta 30 Seeger exterior (P1117)

48. Pana paralela 8x7x40 (P2371)

49. Pana paralela 8x7x30 (P2369)

KK30 schita 7 (grup valturi culegatoare)

Subansamblu 7

Componente:

2. Melc SIP dreapta KK30-07/02 72-0220 (P2320)

KK30-07/02 72-0220

3. Carcasa SIP dreapta KK30-07/03 72-0172 (P2294)

KK30-07/03 72-0172

4. Valt scurt SIP dreapta L860 KK30-07/04 72-0108 (P2322)

KK30-07/04 72-01084

5. Bucsa SIP o51x9.5 KK30-07/05 72-0180 (P2273)

KK30-07/05 72-0180

7. Melc SIP stanga KK30-07/07 72-0219 (P2321)

KK30-07/07 72-0219

8. Carcasa SIP stanga KK30-07/08 72-0173 (P2293)

KK30-07/08 72-0173

9. Valt scurt SIP stanga L860 KK30-07/09 72-0109 (P2323)

KK30-07/09 72-0109

10. Ciocanel SIP M20x1.5x135 KK30-07/10 72-0181 (P2282)

KK30-07/10 72-0181

11. Tija SIP o14x110 KK30-07/11 72-0182 (P2281)

KK30-07/11 72-0182

22. Roata lant SIP Z11 o144x28 KK30-07/22 72-0111 (P2283)

KK30-07/22 72-0111

40. Surub M10x35 (P1250)

43. Surub M10x30 (P0653)

45. Piulita M8 (P2083)

46. Piulita M10 (P1042)

47. Piulita M12 (P0630)

48. Piulita M20x1.5 (P2251)

51. Saiba Grower M8 (P2162)

52. Saiba Grower M10 (P2163)

53. Saiba Grower M12 (P2164)

54. Saiba Grower M20 (P2158)

57. Rulment 6204 2RS SKF (P1818)

58. Rulment 6205 2RS SKF (P1819)

58. Rulment 6205 2RS ZKL-ZVL (P0549)

61. Siguranta 52 Seeger interior (P1185)

KK30 schita 9 (bloc depanusare culegator)

Subansamblu 9

Componente:

4. Ax lung SIP o25x1250 KK30-09/04 72-0122 (P2316)

KK30-09/04 72-0122

9. Cuplaj SIP o70x55 KK30-09/09 72-0123 (P2299)

KK30-09/09 72-0123

10. Ax lung SIP o25x1232 KK30-09/10 72-0124 (P2314)

KK30-09/10 72-0124

11. Ax scurt SIP o40x148 KK30-09/11 72-0125 (P2279)

KK30-09/11 72-0125

14. Paleta aparatoare cauciuc SIP (P2342)

KK30-09/11 72-0125

26+27. Dinti depanusator lemn KK30-09/26 27 (P0812)

KK30-09/26 + KK30-09/27

28. Pinion SIP Z10 o86x25 KK30-09/28 72-0130 (P2271)

KK30-09/28 72-0130

43. Surub M8x25 (P0841)

45. Surub M10x40 (P1742)

48. Piulita M8 (P2083)

49. Piulita M10 (P1042)

50. Piulita M12 (P0630)

51. Piulita M16 (P0632)

54. Saiba Grower M8 (P2162)

55. Saiba Grower M10 (P2163)

56. Saiba Grower M12 (P2164)

57. Saiba Grower M16 (P2157)

62. Siguranta 52 Seeger interior (P1185)

63. Pana paralela 8x7x36 (P1606)

66. Stift crestat 6x40 (P2123)

70. Gresor hidraulic M8 (P0312)

71. Gresor hidraulic M8x1x45 cot (P1469)

KK30 schita 10 (subansamblu port cutit)

Subansamblu 10

Componente:

1. Ax tocator SIP L510 KK30-10/01 72-0131 (P2312)

KK30-10/01 72-0131

4. Carcasa cu 4 gauri SIP KK30-10/04 81-0007/72-0232 (P2296)

KK30-10/04 81-0007/72-0232

5. Capac cu gaura SIP T40-K/05 73-1068 (P2272)

T40-K/05 73-1068

6. Capac dreapta plin SIP T40-K/06 73-1069 (P2274)

T40-K/06 73-1069

7. Fulie SIP o130x42 KK30-10/07 72-0217 (P2261)

KK30-10/07 72-0217

8. Cutit tocator SIP dreapta KK30-10/08 60-0304 (P0428)

KK30-10/08 60-0304

9. Cutit tocator SIP stanga KK30-10/09 60-0305 (P2326)

KK30-10/09 60-0305

10. Bolt SIP o20x44 KK30-10/10 72-0132 (P0430)

KK30-10/10 72-0132

14. Surub M10x30 (P0653)

15. Piulita M10 (P1042)

16. Saiba Grower M10 (P2163)

18. Siguranta 30 Seeger exterior (P1117)

19. Siguranta 35 Seeger exterior (P0622)

20. Siguranta 80 Seeger interior (P1932)

21. Gresor hidraulic M8 (P0312)

22. Gresor hidraulic M8x1x45 cot (P1469)

23. Pana paralela 8x7x36 (P1606)

24. Splinturi 5x32 (P1544)

KK30 schita 12 (grup pinioane si roti dintate)

Subansamblu 12

Componente:

3. Pinion conic SIP Z19 cu guler mare KK30-12/03 72-0133 (P2269)

KK30-12/03 72-0133

5. Ax cu pinion conic SIP Z19 L151 KK30-12/05 72-0135 (P2253)

KK30-12/05 72-0135

11. Roata lant SIP o93/34x10 KK30-12/11p 72-0171 (P2258)

KK30-12/11p 72-0171

12. Carcasa SIP 27x80x131 KK30-12/12 72-0724 (P2302)

KK30-12/12 72-0724

13. Ax cu roata dintata SIP L760 KK30-12/13 72-0138 (P2309)

KK30-12/13 72-0138

14. Roata lant SIP Z12 o107x45 KK30-12/14sp 72-0140/1 (P2288)

KK30-12/14sp 72-0140/1

14. Roata lant SIP Z13 o116x45 KK30-12/14sp 72-0140 (P2287)

KK30-12/14sp 72-0140

15. Carcasa SIP o100x40 KK30-12/15 72-0218 (P2303)

KK30-12/15 72-0218

21. Roata lant SIP Z 14 o93x30 KK30-12/21 72-0143 (P2265)

KK30-12/21 72-0143

39. Surub M12x30 (P0844)

42. Surub M10x30 (P0653)

43. Piulita M10 (P1042)

45. Piulita M12 (P0630)

46. Saiba Grower M8 (P2162)

47. Saiba Grower M10 (P2163)

48. Saiba Grower M12 (P2164)

51. Rulment 6005 2RS SKF (P1808)

51. Rulment 6005 2RS ZKL-ZVL (P1427)

53. Rulment 6008 2RS SKF (P1811)

54. Rulment 6007 2RS SKF (P1810)

54. Rulment 6007 2RS C3 ZKL-ZVL (P0551)

55. Rulment 6007 2RS SKF (P1810)

56. Rulment 6012 2RS ZKL-ZVL (P1430)

57. Siguranta 25 Seeger exterior (P1069)

58. Siguranta 30 Seeger exterior (P1117)

59. Siguranta 35 Seeger exterior (P0622)

60. Siguranta 40 Seeger exterior (P1474)

62. Siguranta 62 Seeger interior (P1616)

66. Simering 35x62x10 (P1463)

71. Pana paralela 10x8x45 (P0682)

72. Pana paralela 8x7x50 (P1607)

74. Gresor hidraulic M8x1x45 cot (P1469)

KK30 schita 14 (grup conic culegator)

Subansamblu 14

Componente:

11. Roata lant SIP Z10 o92x40 KK30-14/11 (12/14) 72-0164 (P2289)

KK30-14/11 (12/14) 72-0164

20. Piulita M12 (P0630)

22. Saiba Grower M12 (P2164)

25. Saiba Grower M10 (P2163)

27. Rulment 6005 2RS SKF (P1808)

27. Rulment 6005 2RS ZKL-ZVL (P1427)

29. Rulment 6007 2RS SKF (P1810)

29. Rulment 6007 2RS C3 ZKL-ZVL (P0551)

30. Rulment 6209 2RS SKF (P1823)

30. Rulment 6209 2RS ZKL-ZVL (P0554)

31. Siguranta 25 Seeger exterior (P1069)

32. Siguranta 30 Seeger exterior (P1117)

33. Siguranta 35 Seeger exterior (P0622)

34. Siguranta 45 Seeger exterior (P0621)

35. Siguranta 62 Seeger interior (P1616)

36. Siguranta 85 Seeger interior (P1507)

37. Pana paralela 8x7x30 (P2369)

38. Pana paralela 8x7x36 (P1606)

39. Pana paralela 8x7x40 (P2371)

40. Pana paralela 10x8x60 (P1605)

53. Gresor hidraulic M8 (P0312)

T40 EOL schita 8 (Sectie depanusare 2)

Subansamblul Sectie depanusare stiuleti.

Componente:

1. Cadru depanusetor sud.

152196519

2. Ax lung SIP o25x1259 T40-F/02 72-0273 (P2317)

152198929

3. Pinion 2-10/7

152199007

4. Ax 5 - 25x1260

152199321

5. Pinion 1 - 25/4

152199409

6. Bucsa 2 - 25,5/ 33,7- 5,5

152199506

7. Ax 1

152199722

8. Valt de curatire

152199908

9. Ax

152200004

10. Ax 4 - 30x 68

152200102

11. Ax sud. 1

152200200

12.Roata lant SIP Z21 o136x92 T40-F/12 72-0256 (P2291)

152200406

13. Tabla sud.

155231304

14. Saiba 10

000224304

15. Aparatoare

152202228

16. Valt cu filet

151445217

17.Pinion SIP Z10 o86x25 KK30-09/28 72-0130 (P2271)

151444501

18.Set depanusator O25 (P0989)

151444404

19. Lagar SIP T70-10/11 72-0739 (P2297)

151672514

20. Carcasa rulment

155075508

21. Butuc rola SIP o72x50 T70-10/07 72-0737 (P2255)

151672437

22. Bucsa 2- 25,5/ 33,7- 13

151672700

23. Butuc rola SIP o72x130 T70-10/06 72-0736 (P2254)

151852223

24. Segment 2 (410)

151852007

25. Pinion 1 - 20/4

151854103

26. Dinti depanusator metal T40-08/26 (P0429)

151445618

27. Ax 4 - 40x 100

151673200

28. Ax scurt SIP o40x135 T70-10/19 72-0745 (P2280)

151851723

29. Saiba 8,5/ 24 - 1,5

151159908

30. Surub M12x30 (P0844)

000212004

31. Surub M10x 25

000210300

32. Surub M 8x 20

000208607

33. Piulita M12 (P0630)

150160300

34. Saiba A 13

000224509

35. Saiba Grower M12 (P2164)

000228603

36. Saiba Grower M10 (P2163)

000228408

37. Pana paralela 8x7x25 (P2368)

000230501

38. Pana paralela 8x7x25 (P2368)

150207706

39. Stift 10 x 70

150060908

40. Stift 8 x 70

000234703

41. Stift 8 x 60

000234605

42. Stift 6 x 55

000233802

43. Stift 5x 70

150082706

44. Stift 13 x 70

000235506

45. Stift 5 x 50

000233009

46. Siguranta inelara N 55x2

000236202

47. Siguranta inelara Z 30x1,5

000237504

48. Siguranta inelara Z 25x1,2

000237407

49. Rulment UD 205 ZKL-ZVL (P1645)-Rulment KR 6205 2RS

000255208

50. Rulment 6006 2RS SKF (P1809)

000243409

50. Rulment 6006 2RS ZKL-ZVL (P1290)

000243409

51. Surub M12x40 (P0845)

159444906

52. Siguranta inelara Z 24x1,75

150094800

53. Piulita M8 (P2083)

000250800

54. Saiba A13

000224509

55. Rulment KR CS205 LLU

150107501

56. Saiba

154463815

57. Bucsa

155075303

58. Aparatoare

156152209

59. Surub M 8x16

150317507

60. Saiba SKM 8

150426701

61. Piulita M8 (P2083)

000220905

Garduri electrice si accesorii

Crestere animale

Saiba Grower M10

Schema roata antrenare SPC

Schema brazdar fata SUP

Schema brazdar spate SUP

Schema sectie semanat SPC

KK30 schita 6 (jgheaburi de dirijare)

KK30 schita 7 (grup valturi culegatoare)

KK30 schita 9 (bloc depanusare culegator)

KK30 schita 10 (subansamblu port cutit)

KK30 schita 12 (grup pinioane si roti dintate)

KK30 schita 14 (grup conic culegator)

T40 EOL schita 8 (Sectie depanusare 2)
